AT Labs Hardware

AT Labs Hardware

From individual ruggedized radios to complete deployable Tactical Operations Centers — AT Labs hardware is designed and built in Tennessee for the demands of search and rescue, disaster response, law enforcement, and field operations.

RM-2 Radio RM-1 Radio Response Crate Crate Mini

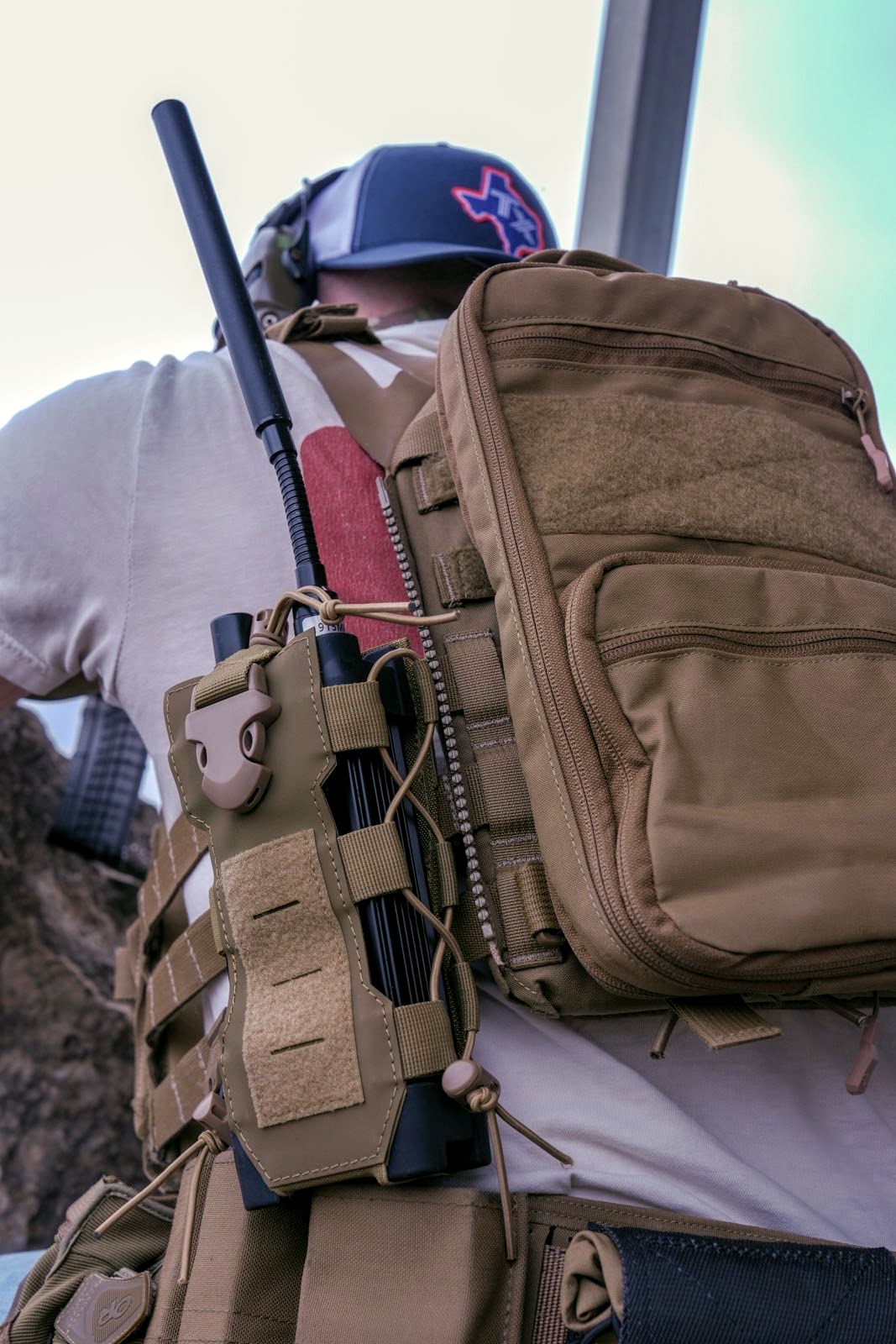

RM-2 Ruggedized MANET Radio mounted on plate carrier in field

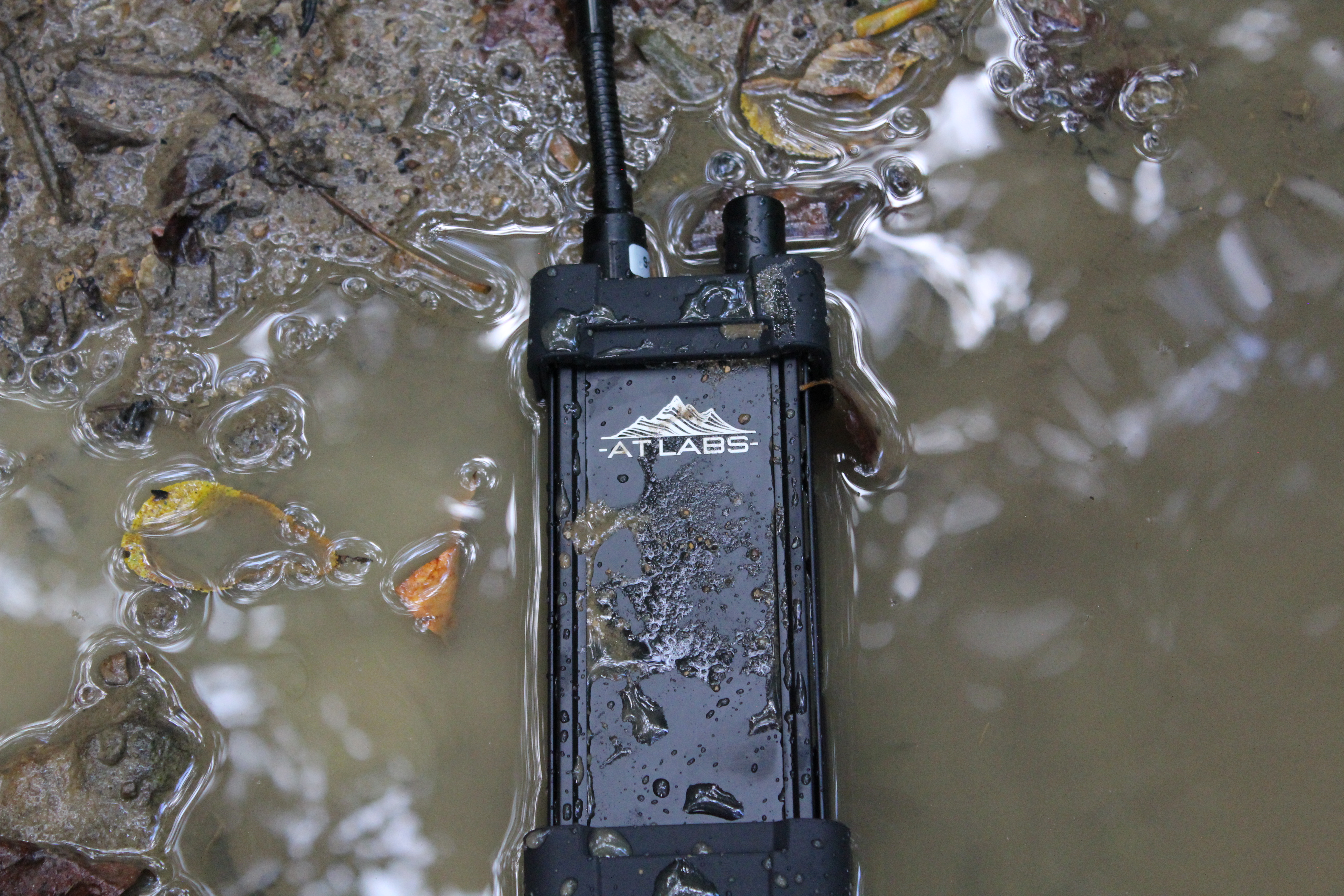

RM-2 partially submerged — IP-68 waterproof rating

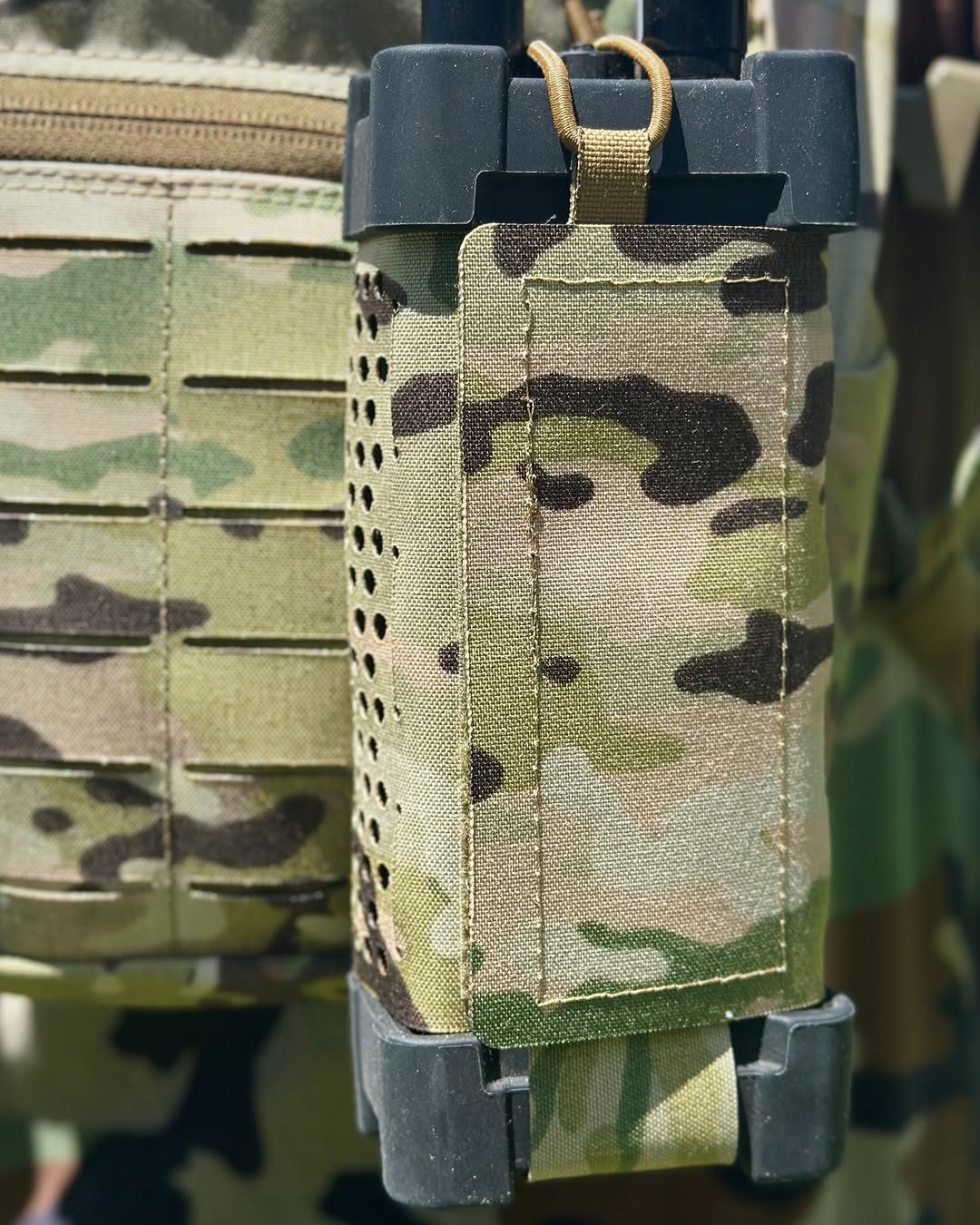

RM-2 in multicam pouch on plate carrier

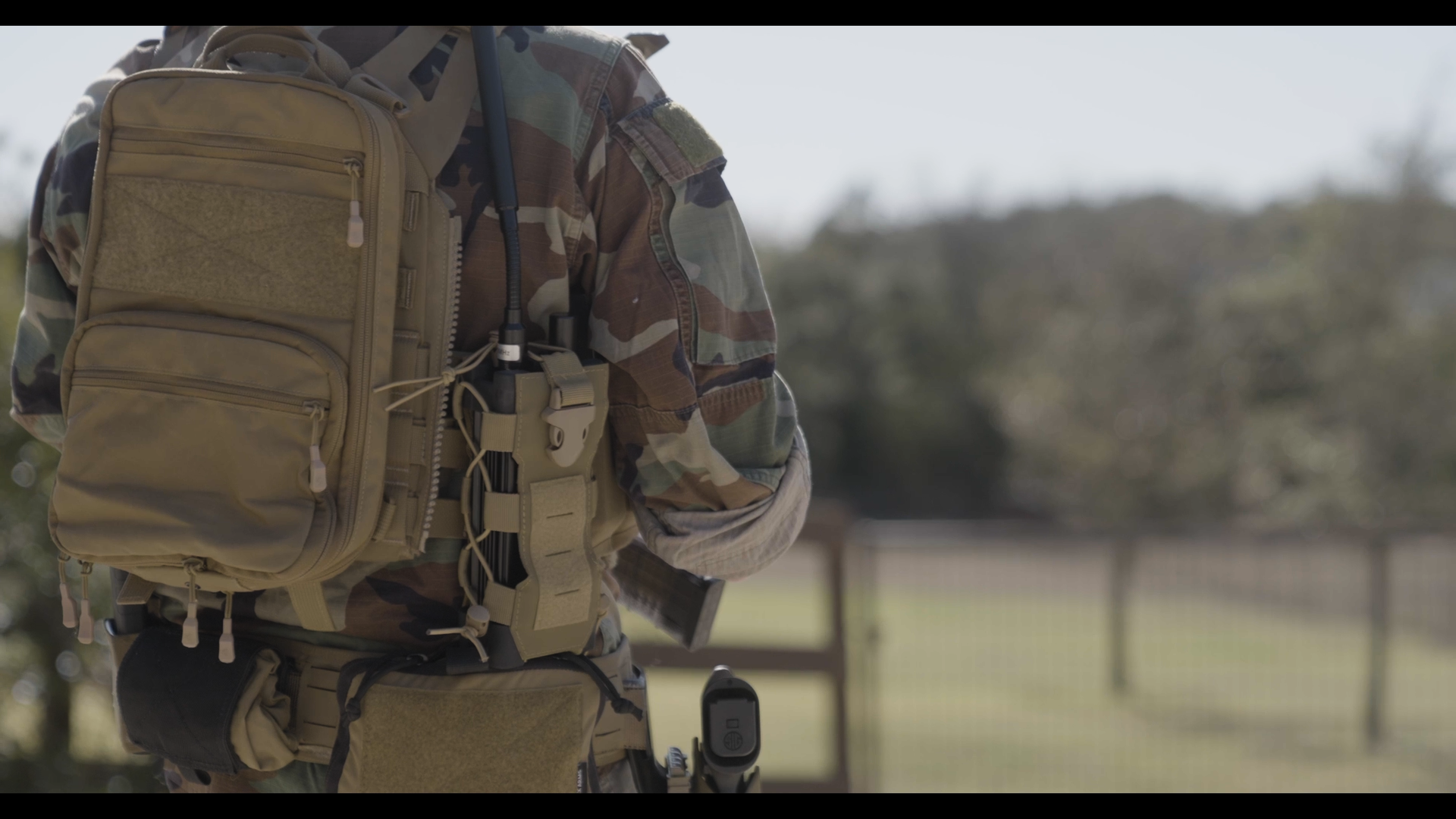

RM-2 worn on chest rig in field deployment

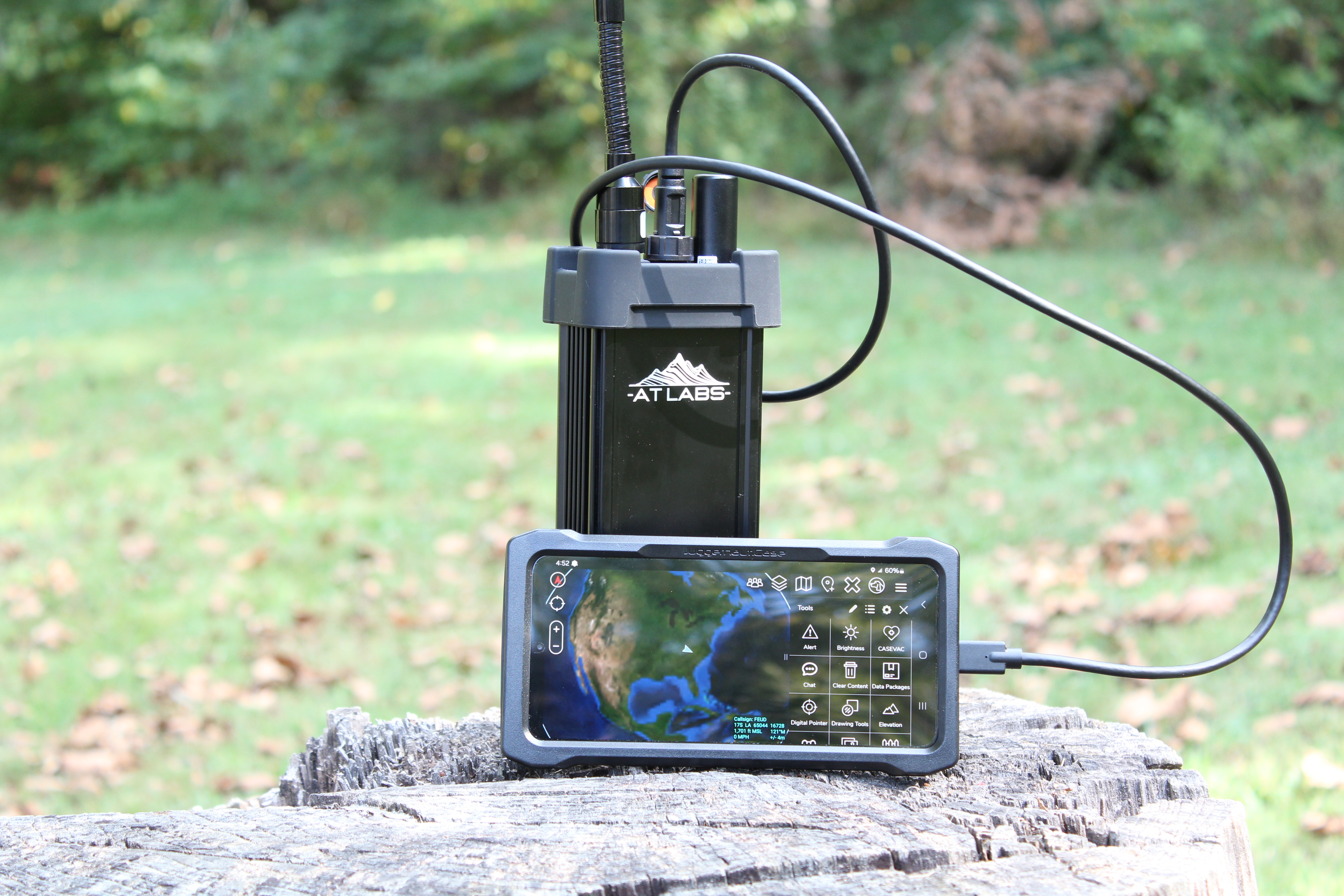

RM-2 with ATAK running on connected device
Next Generation · Made in USA

RM-2 Ruggedized MANET Radio

From $795.00

Made to order — allow 8 weeks for assembly and shipping

Available Variants

Portable $795.00
Infrastructure $895.00

The RM-2 is the next evolution of the ruggedized mesh radio that changed the game. Building on the proven RM-1 platform, it delivers professional-grade performance in the same compact, bombproof form factor.

At its core is a new, American-made LoRa PCB designed by AT Labs. It doubles transmit power to 2 watts (for licensed HAM operators), significantly increases bandwidth, and supports a variety of traffic simultaneously through the mesh.

  • 2W transmit power (HAM licensed) — double the RM-1
  • Extruded aluminum chassis with shock-absorbing bumpers
  • IP-68 / MIL-STD-810H pending — sealed waterproof I/O
  • 10 Ah internal battery — days of operation per charge
  • Backward-compatible with RM-1 and standard Meshtastic channels
  • Custom firmware available for Meshtastic, MeshCore, and Reticulum
Firmware Notice: The RM-2 radio core cannot accept input signals above 8 dB. Transmit power must be set to 8 or below in firmware settings. Failure to comply will result in irreparable damage not covered under warranty.
Order via Constellation Response ↗ Bulk / International Inquiry

Technical Specifications

Power Output2 W max (HAM licensed)
Frequency868 / 915 MHz ISM band (LoRa)
ChipsetEbyte E22-900M33S · Seeed Studio Xiao nRF52 · U.S. PCB
Battery10 Ah Li-ion — days of operation
EnclosureExtruded aluminum, rubber shock bumpers
Ingress ProtectionIP-68 / MIL-STD-810H (pending)
AntennaHigh-gain gooseneck LoRa · Dedicated GNSS
I/OWaterproof USB-C · Pogo charging port
SoftwareMeshtastic · MeshCore · Reticulum (dev)
OriginU.S.A. · Taiwan · Japan · China
RM-1 Ruggedized MANET Radio field-proven in water — IP-67 rated

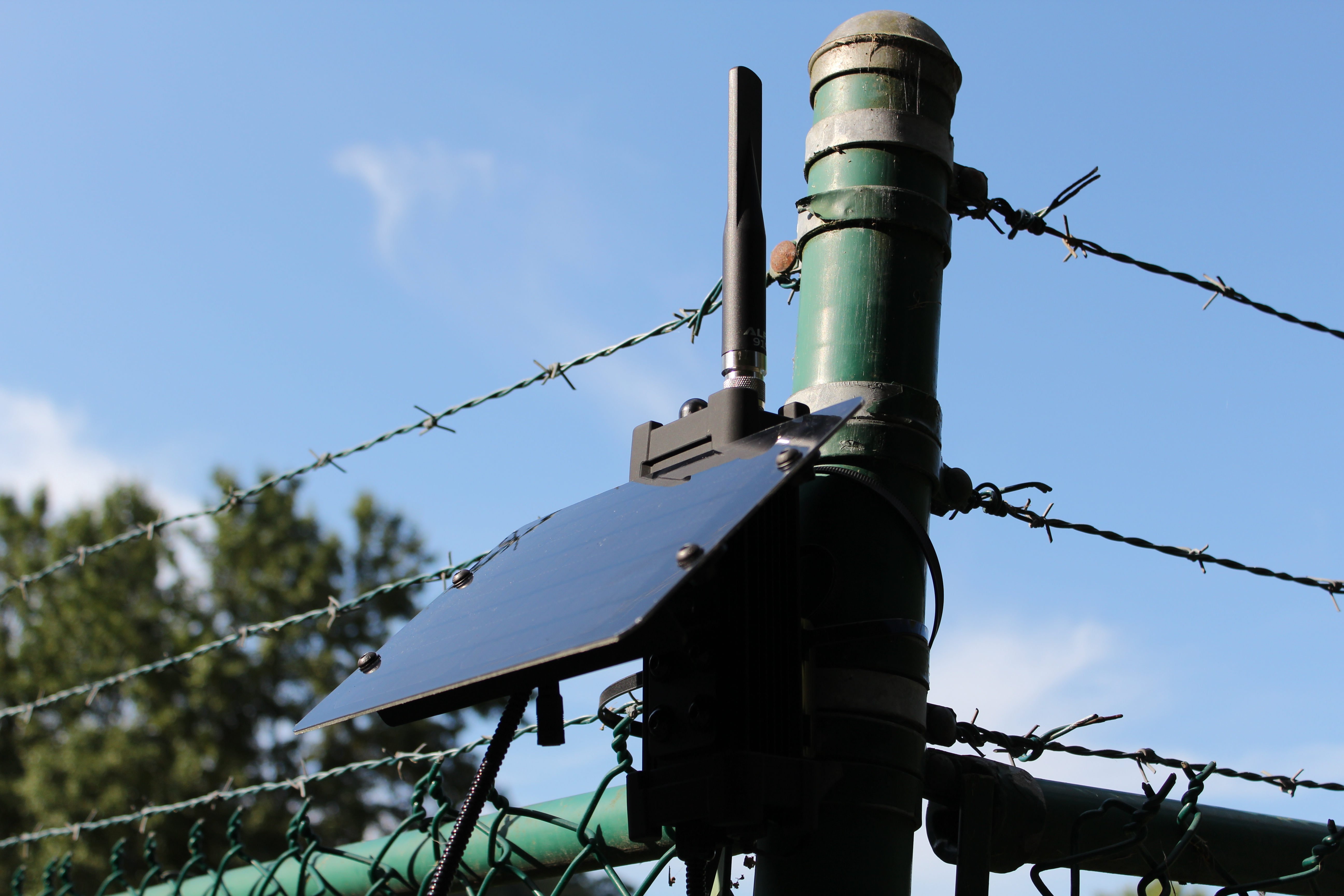

RM-1 Infrastructure variant mounted on fence post with solar panel

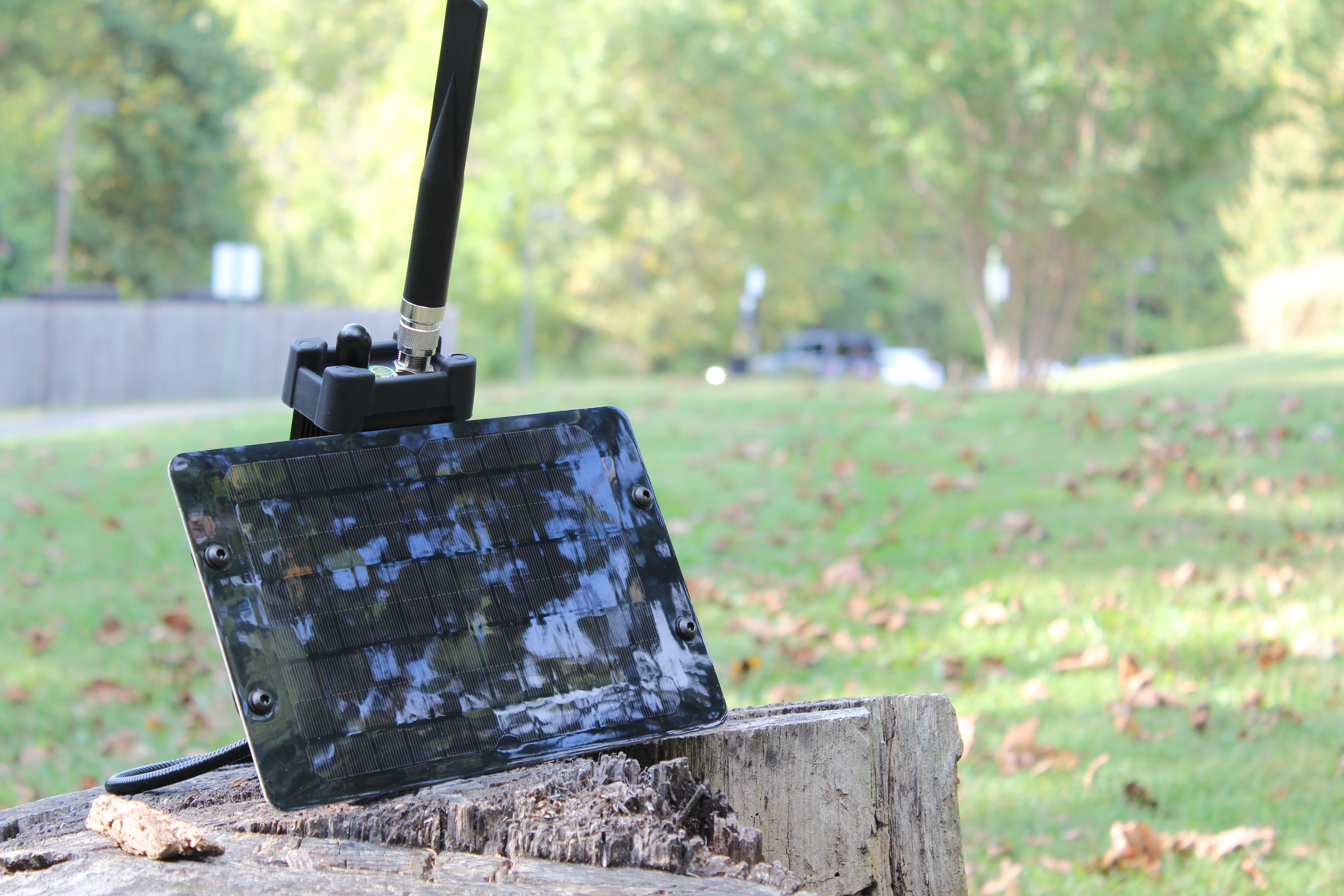

RM-1 Infrastructure variant with solar panel deployed in field

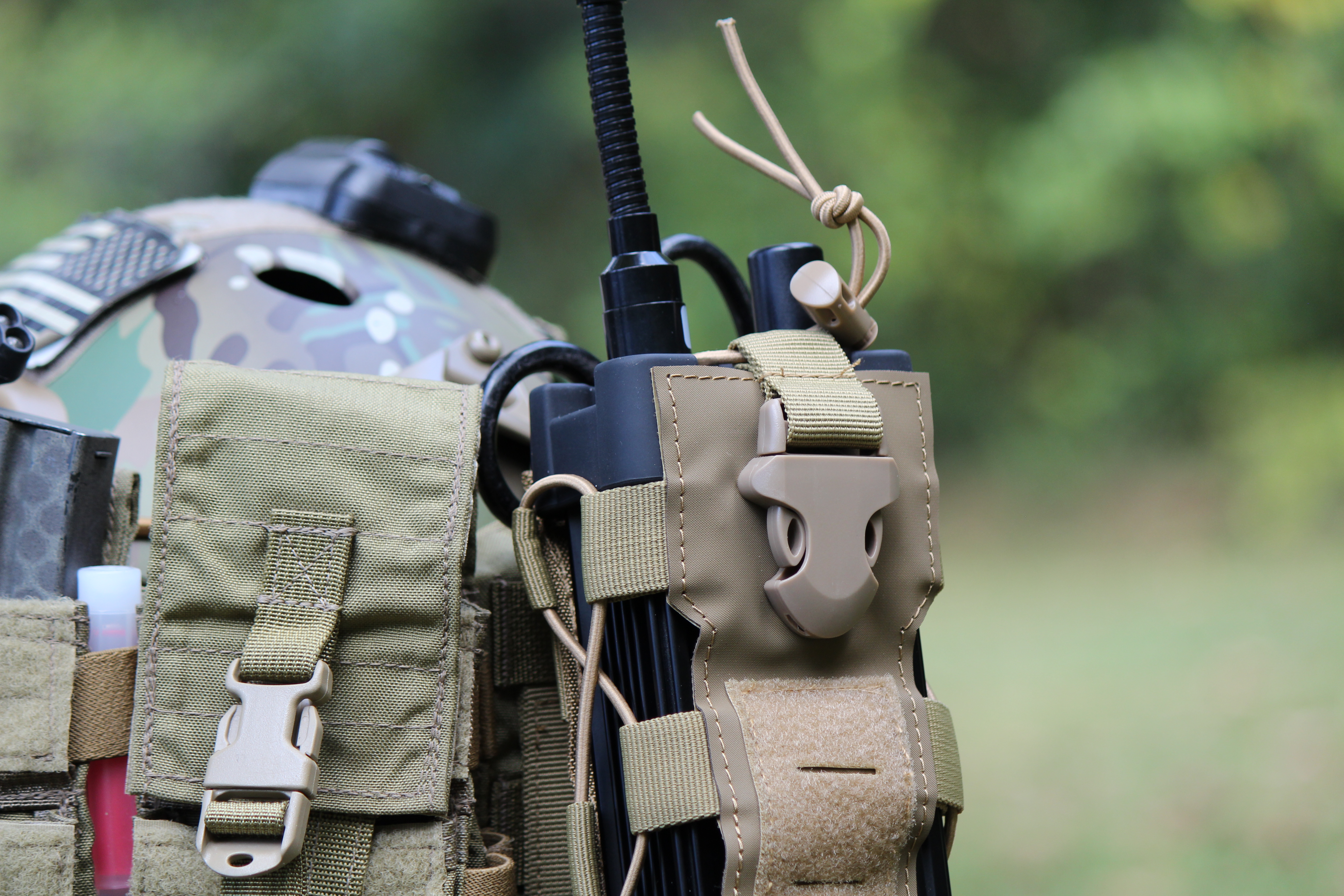

RM-1 in MOLLE radio pouch on tactical kit

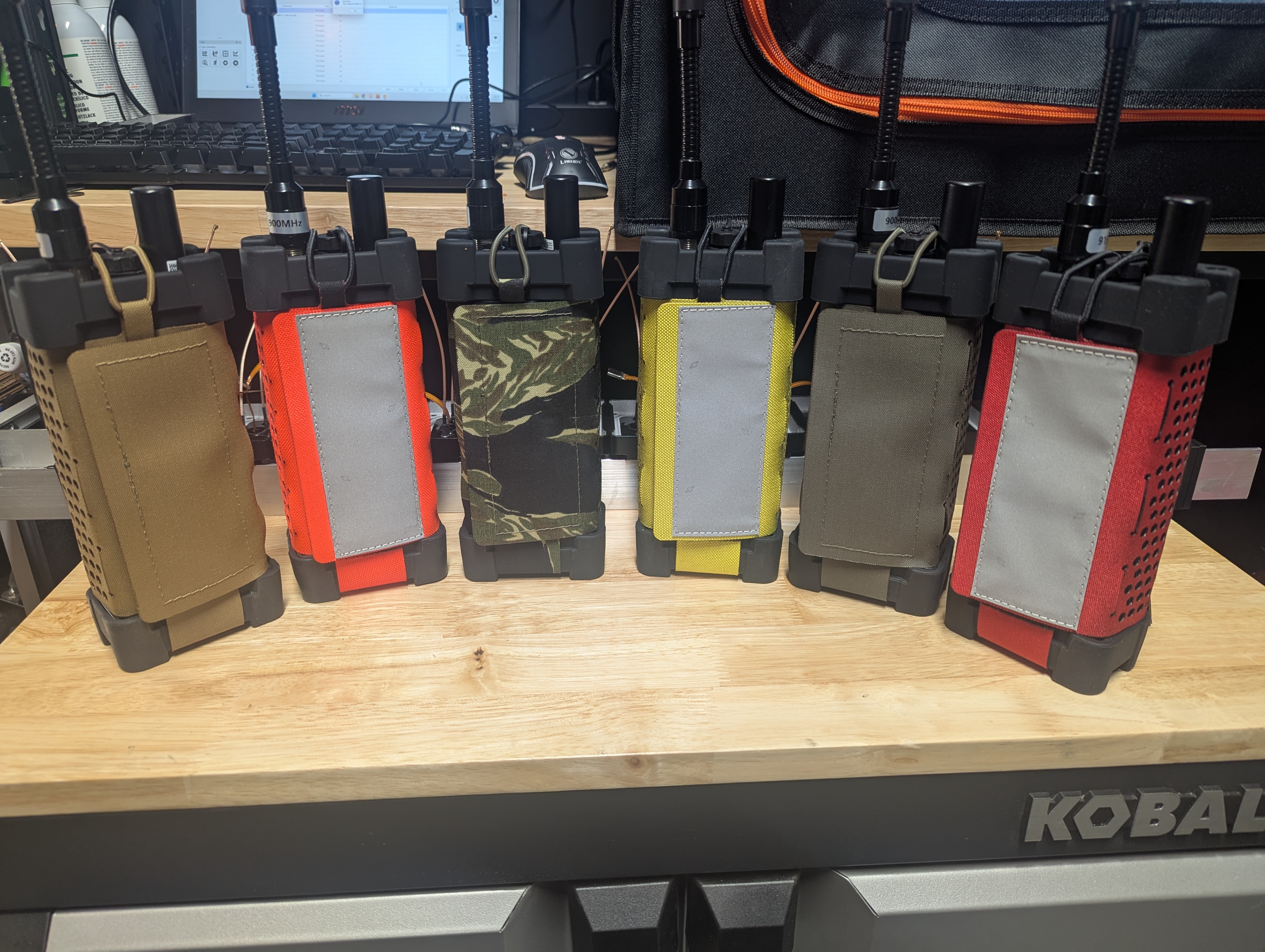

RM-1 units in multiple color configurations
Field Proven · Hurricane Helene

RM-1 Ruggedized MANET Radio

From $545.00

Made to order — allow 8 weeks for assembly and shipping

Available Variants

Portable $545.00
Infrastructure $595.00
Infrastructure + Upgraded Antenna $620.00

The RM-1 provides ad-hoc mesh data networking capabilities for austere environments. Purpose-built for first responders, remote and utility workers, and concerned citizens — it delivers robust connectivity when you need it most.

Designed and assembled in Tennessee. Field-tested and proven during recovery efforts after Hurricane Helene, where these radios established a track record bridging critical communication gaps left by infrastructure destruction.

  • True filtered 1W transmit power — maximum legal limit for unlicensed encrypted comms
  • Meshtastic encrypted messaging, up to 50 miles of range
  • All-aluminum housing, IP-67, MIL-STD-810H pending
  • 10,000mAh battery — 5–15 days portable, up to 30 days infrastructure
  • Fits standard radio pouch — fully compatible with military and responder kit
  • Infrastructure variant includes solar panel and mounting brackets rated to 100 mph winds
  • Active helical GNSS antenna — reliable location regardless of device orientation
  • Supports Meshtastic, MeshCore, and Reticulum
Order via Constellation Response ↗ Bulk / International Inquiry

Technical Specifications

Power Output1 W filtered (max legal, unlicensed)
ProtocolMeshtastic · MeshCore · Reticulum
RangeUp to 50 miles (line of sight, conditions dependent)
Battery10,000 mAh — 5–15 days portable
Infrastructure RuntimeUp to 30 days (with solar, config dependent)
Ingress ProtectionIP-67 / MIL-STD-810H (pending)
Operating TempCharge: 0–45°C · Discharge: –20–60°C
AntennaTuned LoRa · Active helical GNSS (portable)
ConnectivityBluetooth · Waterproof USB-C
OriginTennessee, U.S.A.
The Response Crate System

When a Radio Isn't Enough

Individual radios extend your reach. The Response Crate System gives you the entire communications backbone — radios, charging, server, software, and situational awareness — in a single deployable package. No recurring costs, no cloud dependency, no IT staff on scene.

The Problem

Cell Networks

Limited to line-of-sight coverage. Canyons, hollows, and dense urban terrain go dark. Overloaded in mass-casualty events when you need them most.

The Problem

Satellite Comms

Expensive subscriptions running whether you use them or not. Requires clear sky view. Still reliant on third-party infrastructure you don't control.

The Problem

DIY Mesh Nodes

Hobbyist boards and 3D-printed enclosures are fragile, inconsistent, and largely unsupported. A prototype is not a solution on a live incident.

AT Labs builds the gap-filler — rugged, subscription-free, out-of-box ready mesh communications.

Flagship System · Constellation Response × AT Labs

The Response Crate

Complete TOC-in-a-box. Open it up, track everyone.

When your team arrives on scene, the network should already be there. The Response Crate is a complete Tactical Operations Center you can carry in a truck bed. Open the lid, power on — fifteen radios begin charging immediately, the TAK server comes up automatically, and your mesh backbone is live across the AO. No IT staff. No satellite subscription. No cell dependency. Just operational awareness, on your terms.

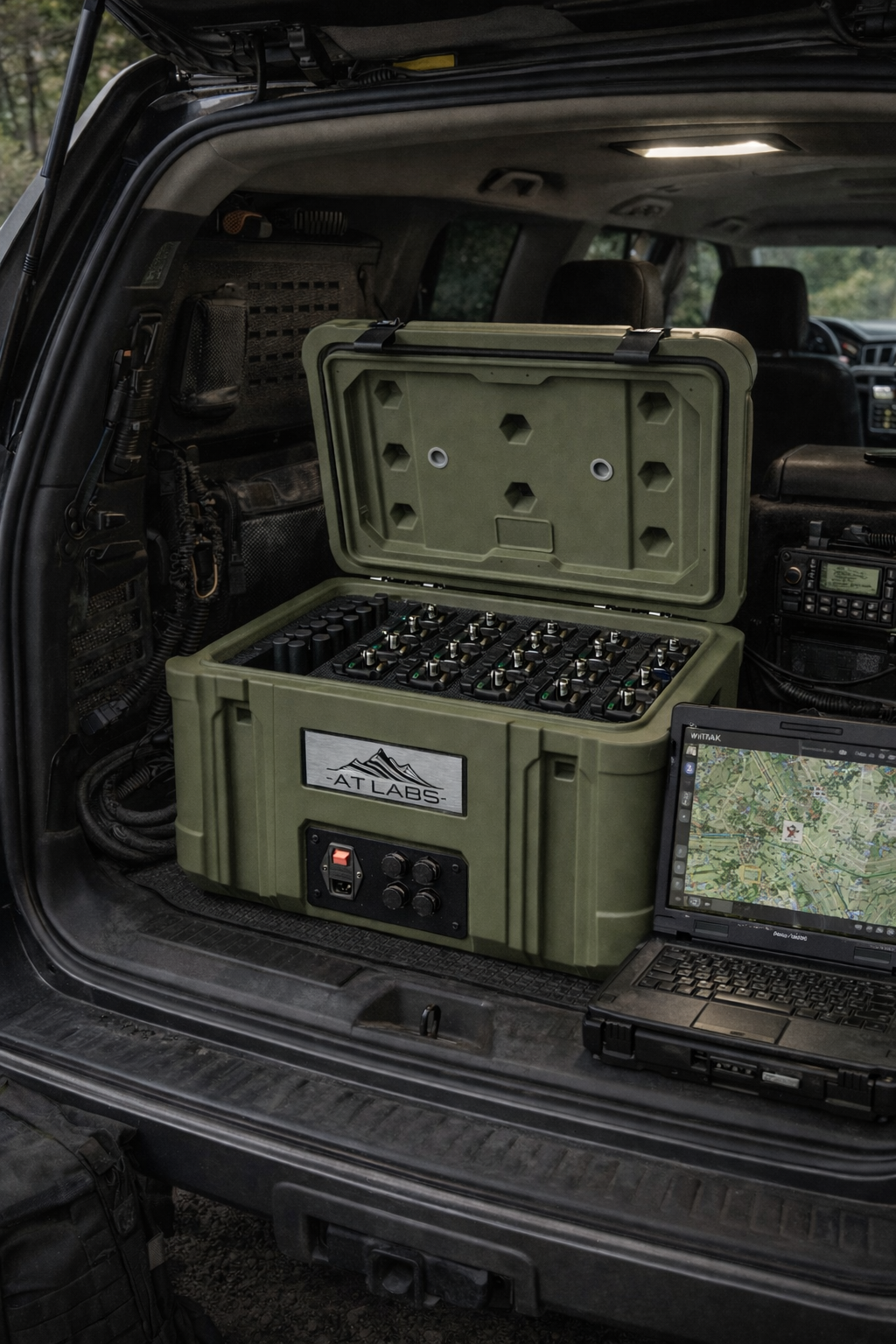

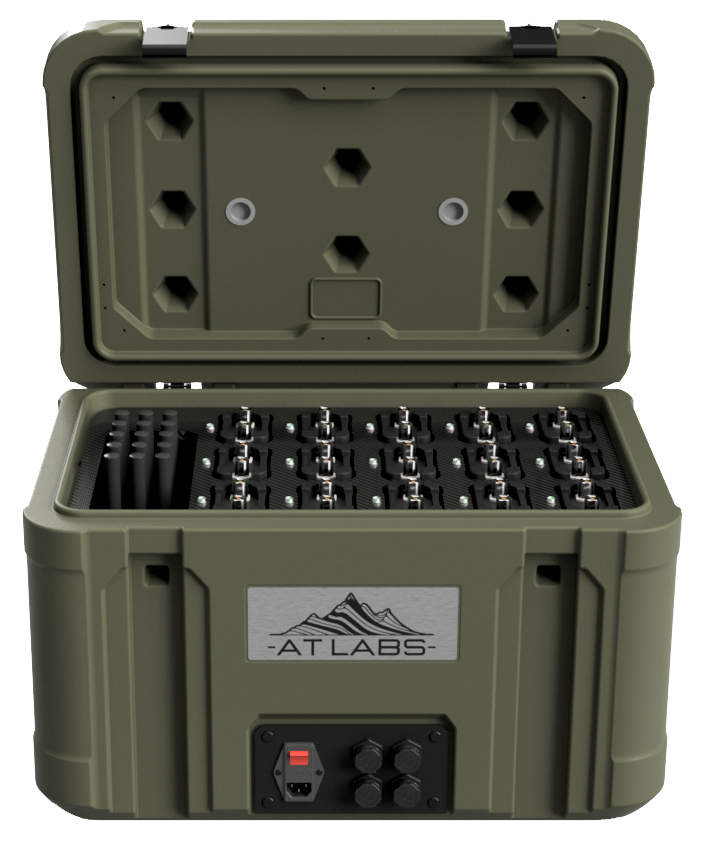

Response Crate open — AT Labs RM-2 radio array loaded and ready to deploy Response Crate deployed in vehicle with WinTAK tactical mapping running
Hardware Suite

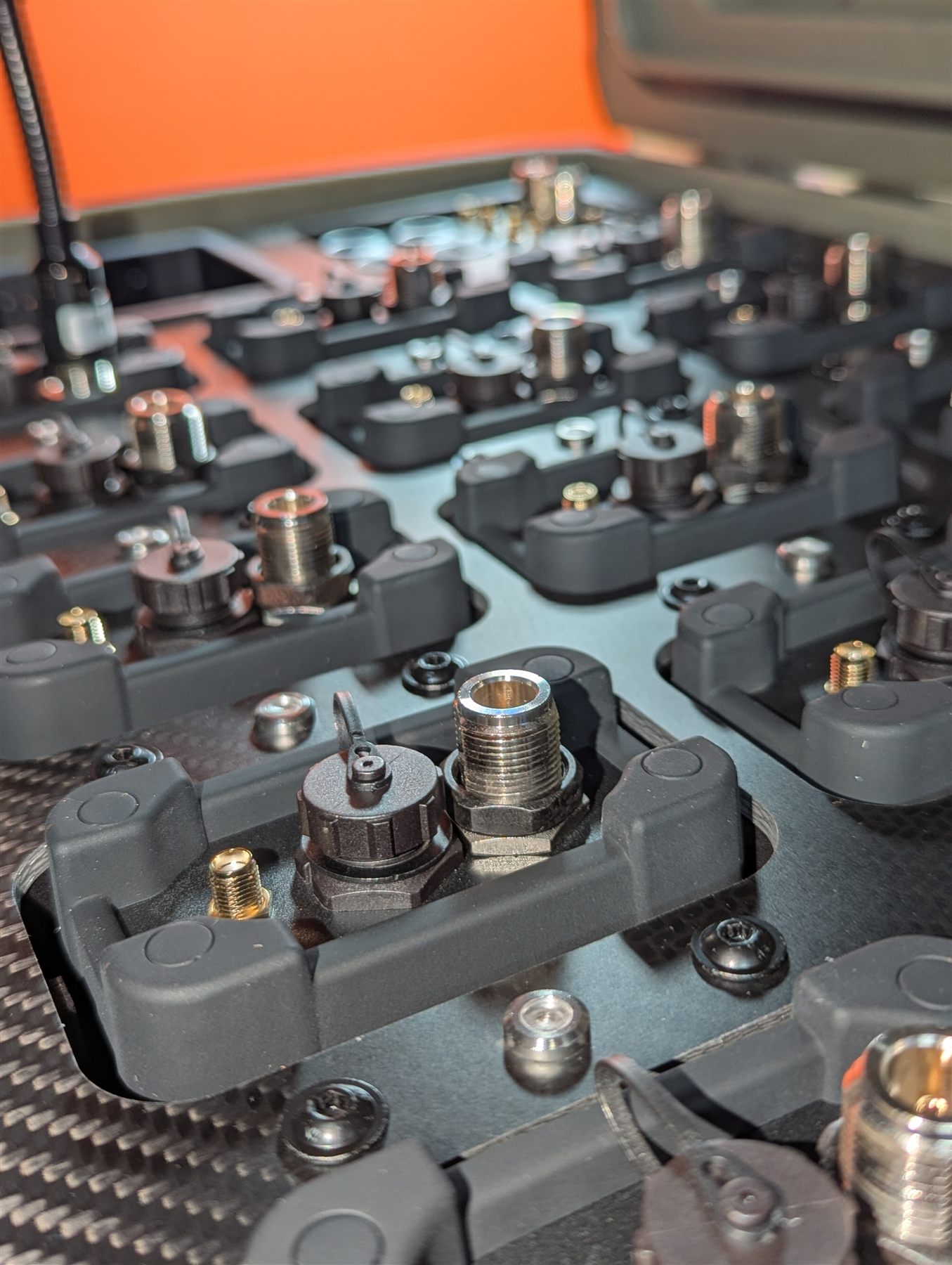

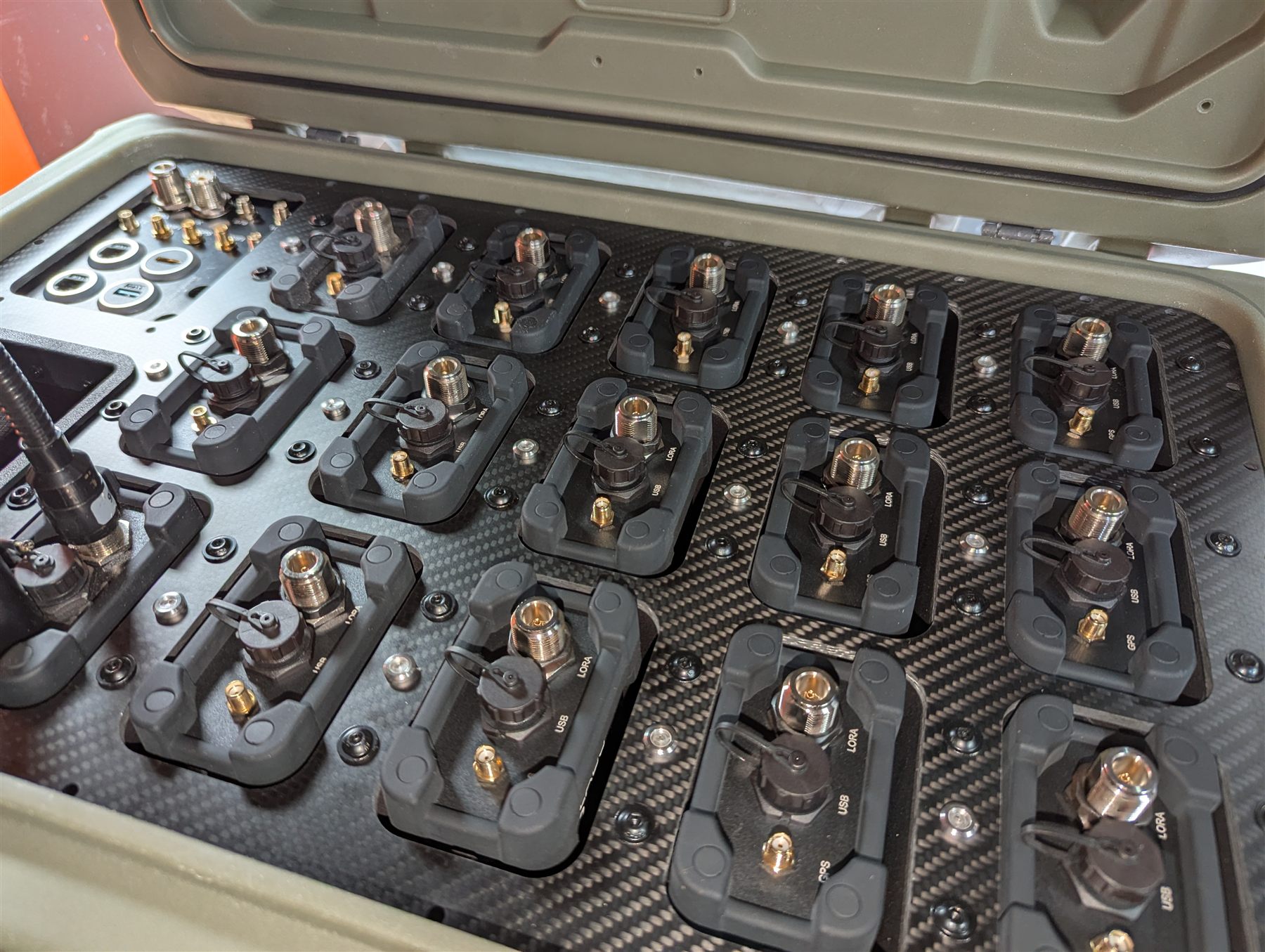

15 × RM-2 Radios & Accessories

Slot in when stored, charge immediately. No separate chargers. Radios, antennas, cables, and pouches included.

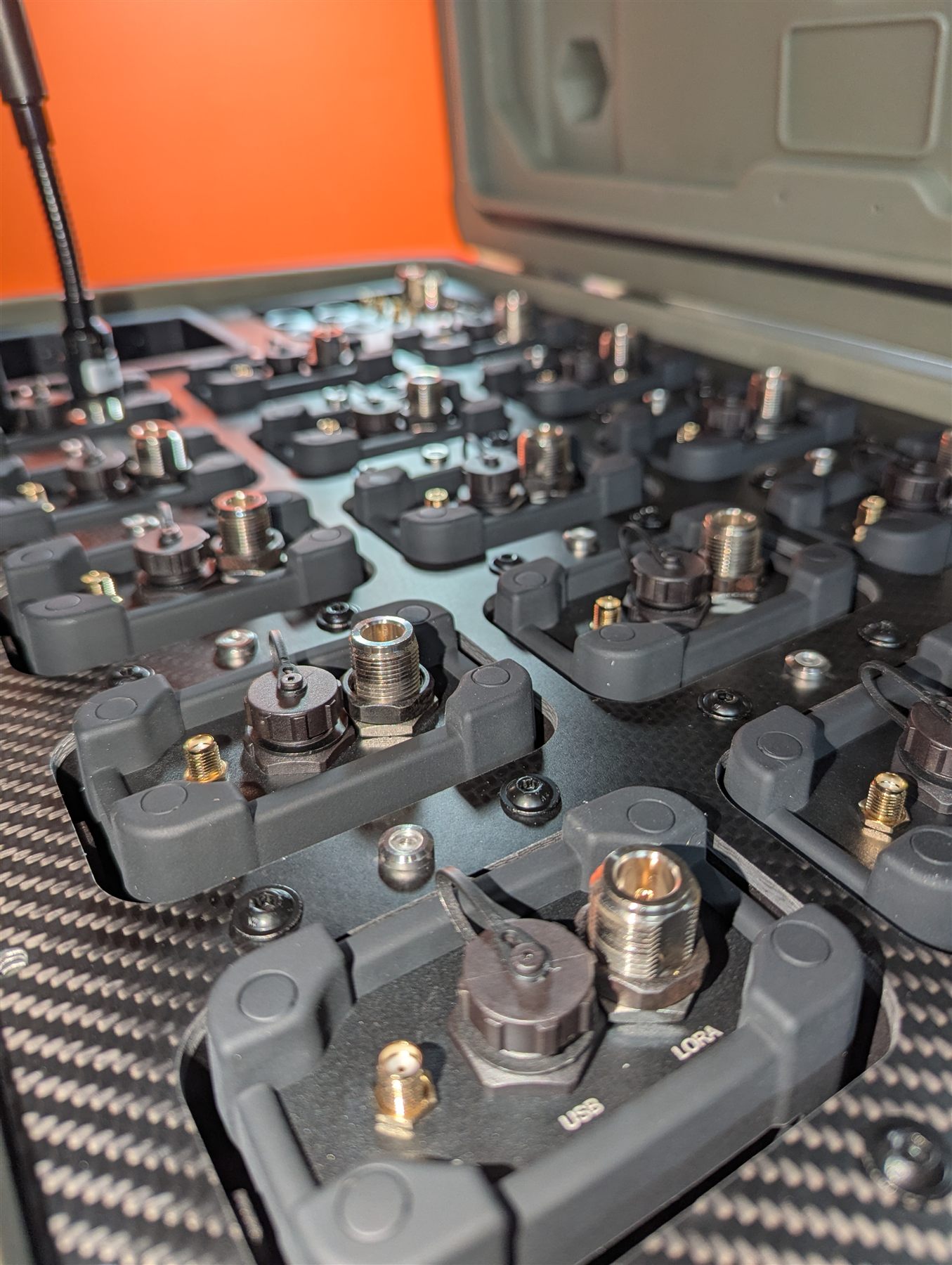

Drop-In Charging

Fast charging with no loose cables. Radios are ready to pull and deploy the moment you arrive on scene.

Internal Battery

Server and networking stack run fully self-powered. Shore power input extends ops indefinitely.

Onboard TAK Server

Full ATAK, WinTAK, and iTAK server running locally. No cloud required. Your C2 picture stays up even when the internet doesn't exist.

Wi-Fi HaLow (802.11ah)

Extended-range, high-bandwidth link for voice, video, and data across your operational area.

Integrated LoRa Mesh

Long-range mesh backbone on the Meshtastic ecosystem. Every radio is also a repeater — coverage goes where your team goes.

Built For
SAR Teams TAK + 15 charged radios from a single box.
Emergency Management Deployable TOC with no subscription costs.
Law Enforcement / SWAT Owned C2 node. No tower dependency.
Wildland Fire / ICS Works in terrain that kills cell and satellite.
Command & Control Software

Every software component is offline-first. Connectivity is a bonus, not a requirement.

XTOC Bundle Exclusive

AI-powered offline tactical ops software. Intelligent resource tracking, offline situational awareness, ICS-compatible workflows. Not sold anywhere else.

AT Labs Bundle

Plan, provision, and manage all radios from the TOC. Includes SignalReach, CommandReach, TopoReach, and NodeReach.

SignalReach

Bespoke repeater planning software. Map your AO and model optimal node placement before boots hit the ground.

CommandReach

Remote admin software. Manage radios and network configuration from the TOC without touching individual units.

TopoReach

Radio provisioning for Cal/SARTopo. Gets your team on the map fast.

NodeReach

Radio provisioning for Meshtastic. Streamlines setup for mixed-firmware deployments.

SAME Weather Alert System

Real-time weather radio alerts integrated into the TOC picture.

ADS-B / AIS Tracking

Offline aircraft and ship tracking — situational awareness beyond the immediate AO.

Pricing
From $25,000
Made-to-order. Custom configurations available. Contact for a quote.
Request a Quote Contact Constellation Response ↗
Warranty: 1-year warranty on all radios and every kit. Extended support and replacement plans available for agencies.
Entry System · Constellation Response × AT Labs

The Response Crate Mini

Not every operation needs fifteen radios. Some need five — now, in a case that takes the same abuse as the field. The Response Crate Mini delivers a complete, ready-to-deploy mesh communications kit without the footprint or price point of the full Crate. Open it, power on, deploy.

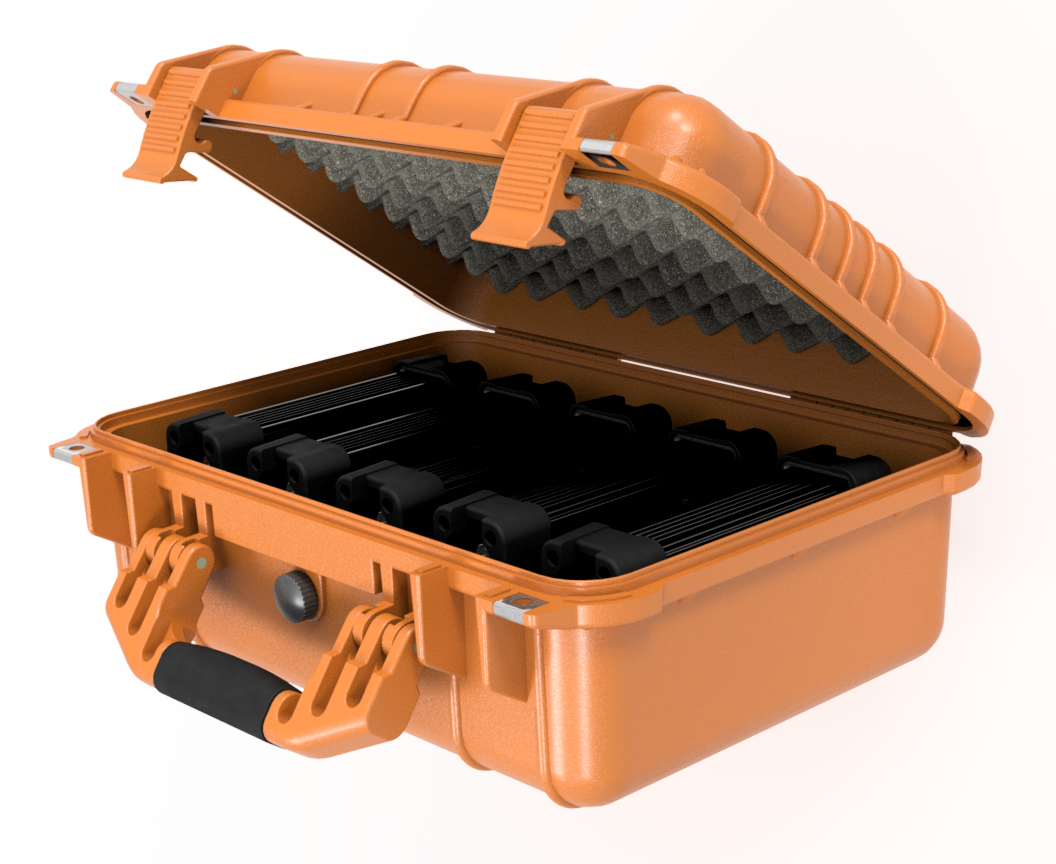

Response Crate Mini open — compact 5-radio mesh communications kit
Ecosystem Compatibility

Meshtastic Firmware

Open source, field-proven mesh protocol. Connects seamlessly with RM-1, RM-2, and full Response Crate deployments.

TAK Compatible

Works with ATAK, WinTAK, and iTAK infrastructure — standalone or integrated with a full Crate TOC.

Full RM Accessory Compatibility

All AT Labs RM-family accessories work with every radio in the kit.

What's in the Box
◈
5 × RM-2 Radios & Accessories 2W LoRa, HAM licensed, U.S.-manufactured PCB, Meshtastic firmware. The same radios proven during Hurricane Helene.
◈
Built-in Charging Cradles Radios charge while stored. No loose cables, no fumbling on scene. Pull and go.
◈
Rugged Pelican-Style Enclosure 17 × 14 × 7" hard case built to take the same abuse as the radios inside.
◈
External Power Input Charges via vehicle outlet, generator, or shore power. Stays ready wherever you stage it.
Who It's For
Pilot Programs Evaluate AT Labs mesh comms before committing to a full Response Crate.
Crate Expansion Add radio capacity to an existing Response Crate deployment.
Smaller Units Volunteer orgs and lean teams that need complete, grab-and-go capability.
Pricing
$7,500 MSRP
Made-to-order.
Request a Quote Contact Constellation Response ↗
Warranty 1-year warranty on all five radios
Agency Support Extended support & replacement plans available
Direct Access AT Labs + Constellation Response for ongoing needs
Lead Time Made-to-order · approximately 8 weeks
Where to Buy

Available Through Constellation Response

RM-1 and RM-2 radios are available for standard retail order through Constellation Response. Response Crate and Crate Mini systems are made-to-order — contact us directly for a quote.

Shop Radios at Constellation Response ↗ Quote a Crate System
